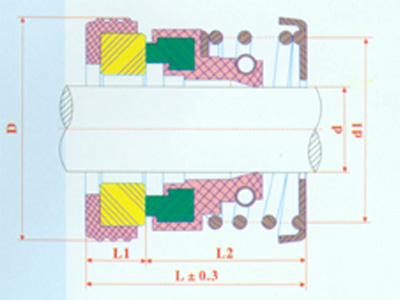

Model:156

Model d d1 D L L1 L2 156-8 8 16.0 18 18 4.5 13.5 156-9 9 20.0 21 23 7 16 156-10 10 20.0 24 23 7 16 156-11 11 20.0 24 23 7 16 156-12 12 22.5 26 24 7 17 156-13 13 22.5 26 24 7 17 156-14 14 24.5 28/30 25 7 18 156-15 15 24.5 28/30 25 7 18 156-16 16 28.5 32 27 8 19 156-17 17 28.5 32 27 8 19 156-18 18 31.5 35 29 8 21 156-19 19 31.5 35 29 8 21 156-20 20 33.5 38 31 8 23 156-22 22 34.5 40 32 8 24 156-25 25 37.5 44 33 9 24 156-28 28 40.5 46 34 9 25 156-30 30 44.5 50 35 9 26 156-32 32 47.5 54 37 9 28 156-35 35 50.5 58 40 10 30 156-38 38 53.5 60 42 10 32 156-40 40 56.5 64 43 10 33 156-45 45 61.5 66 45 10 35 156-50 50 66.5 72 47 10 37

Stationary Ring(Ceramic/SIC/TC) Rotary Ring(Carbon/SIC/TC) Secondary Seal(NBR/EPDM/VITON) Spring&Other Parts(S.S/SUS304/SUS316)

Model:560
Model d d1 D L L1 L2 560A-10 10 23.5 24 23 7 16 560A-11 11 23.5 24 23 7 16 560A-12 12 26.0 26 24 7 17 560A-14 14 28.0 28 25 7 18 560A-15 15 28.0 28 25 7 18 560A-16 16 30.0 32 25 10 15 560A-18 18 32.5 35 26 10 16 560A-19 19 32.5 35 26 10 16 560A-20 20 35.5 38 28 10 18 560A-22 22 37.5 40 28 10 18 560A-24 24 42.0 44 29 10 19 560A-25 25 42.0 44 29 10 19 560A-28 28 45.5 46 30 10 20 560A-30 30 48.0 50 31 10 21 560A-32 32 50.0 54 33 10 13 560A-35 35 54.5 58 36 10 16 560A-38 38 58.5 60 37 10 17 560A-40 40 62.5 64 38 10 18 560A-45 45 66.5 66 40 10 30 560A-50 50 72.5 72 42 10 32 560A-55 55 72 75 44 12 32 560A-60 60 80 80 52 12 40 560A-65 65 85 85 52 13 39	Model d d1 D L L1 L2 560B-3/8" 9.525 23.5 22.225 28.6 6.4 22.2 560B-1/2" 12.700 26.0 25.400 28.6 6.4 22.2 560B-5/8" 15.875 30.0 31.750 32.5 8.7 23.8 560B-3/4" 19.050 32.5 34.925 32.5 8.7 23.8 560B-7/8" 22.225 37.5 38.100 34.1 807 25.4 560B-1" 25.400 44.0 41.275 36.5 9.5 27 560B-11/8" 28.575 48.0 44.450 38.1 9.5 28.6 560B-11/4" 31.750 50.0 47.625 38.1 9.5 28.6 560B-13/8" 34.925 54.5 50.800 39.7 9.5 30.2 560B-11/2" 38.100 58.5 53.975 39.7 9.5 30.2 560B-15/8" 41.275 64.0 60.324 47.6 11.1 36.5 560B-13/4" 44.450 67.0 63.500 47.6 1101 36.5 560B-17/8" 47.625 71.0 66.675 50.8 11.1 39.7 560B-2" 50.800 73.5 69.850 50.8 11.1 39.7 560B-21/4" 57.150 78.4 79.38 57.16 13.5 43.66 560B-21/2" 63.500 84.90 85.73 60.3 13.5 46.8
Stationary Ring(Ceramic/SIC/TC) Rotary Ring(Carbon/SIC/TC) Secondary Seal(NBR/EPDM/VITON) Spring&Other Parts(S.S/SUS304/SUS316)

Model:70
Model d D d1 L L1 L2 70-13 13 29.5 31.5 32 8 24 70-14 14 29.5 31.5 32 8 24 70-15 15 29.5 31.5 26/32 8 18/24 70-16 16 29.5 31.5 26/32 8 18/24
Stationary Ring(Ceramic/SIC/TC) Rotary Ring(Carbon/SIC/TC) Secondary Seal(NBR/EPDM/VITON) Spring&Other Parts(S.S/SUS304/SUS316)

Model:166
Model d d1 D L L1 L2 166-3/8" 9.525 23.29 22.23 23.8 7.14 16.66 166-1/2" 12.7 23.29 25.4 23.01 6.35 16.66 166-5/8" 15.875 30.1 31.75 28.55 10.31 18.24 166-3/4" 19.05 33.07 34.93 28.55 10.31 18.24 166-7/8" 22.225 36.3 38.1 30.94 10.31 20.63 166-1" 25.4 39.42 41.28 31.72 11.1 20.62
Stationary Ring(Ceramic/SIC/TC) Rotary Ring(Carbon/SIC/TC) Secondary Seal(NBR/EPDM/VITON) Spring&Other Parts(S.S/SUS304/SUS316)
